PCR/PSR

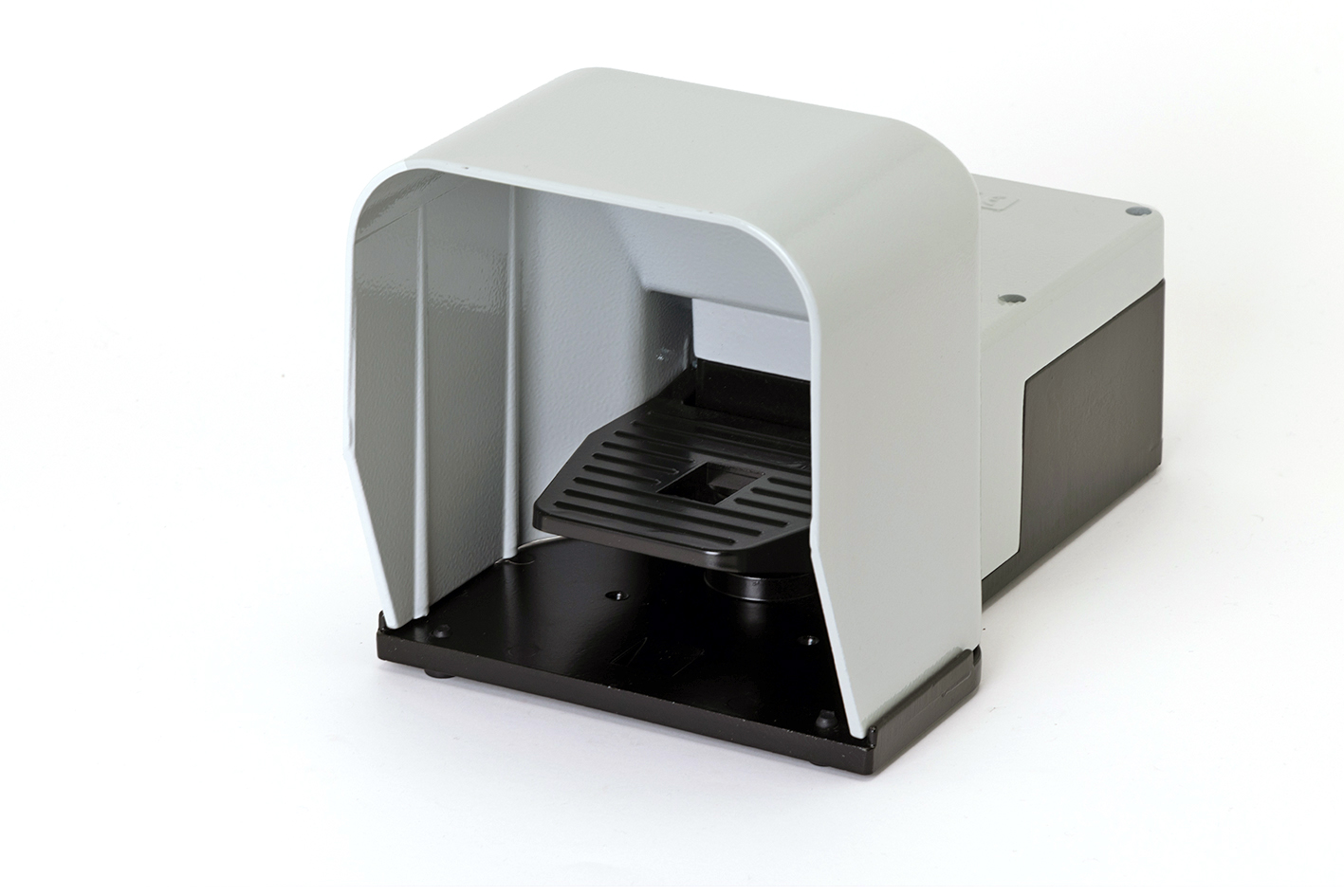

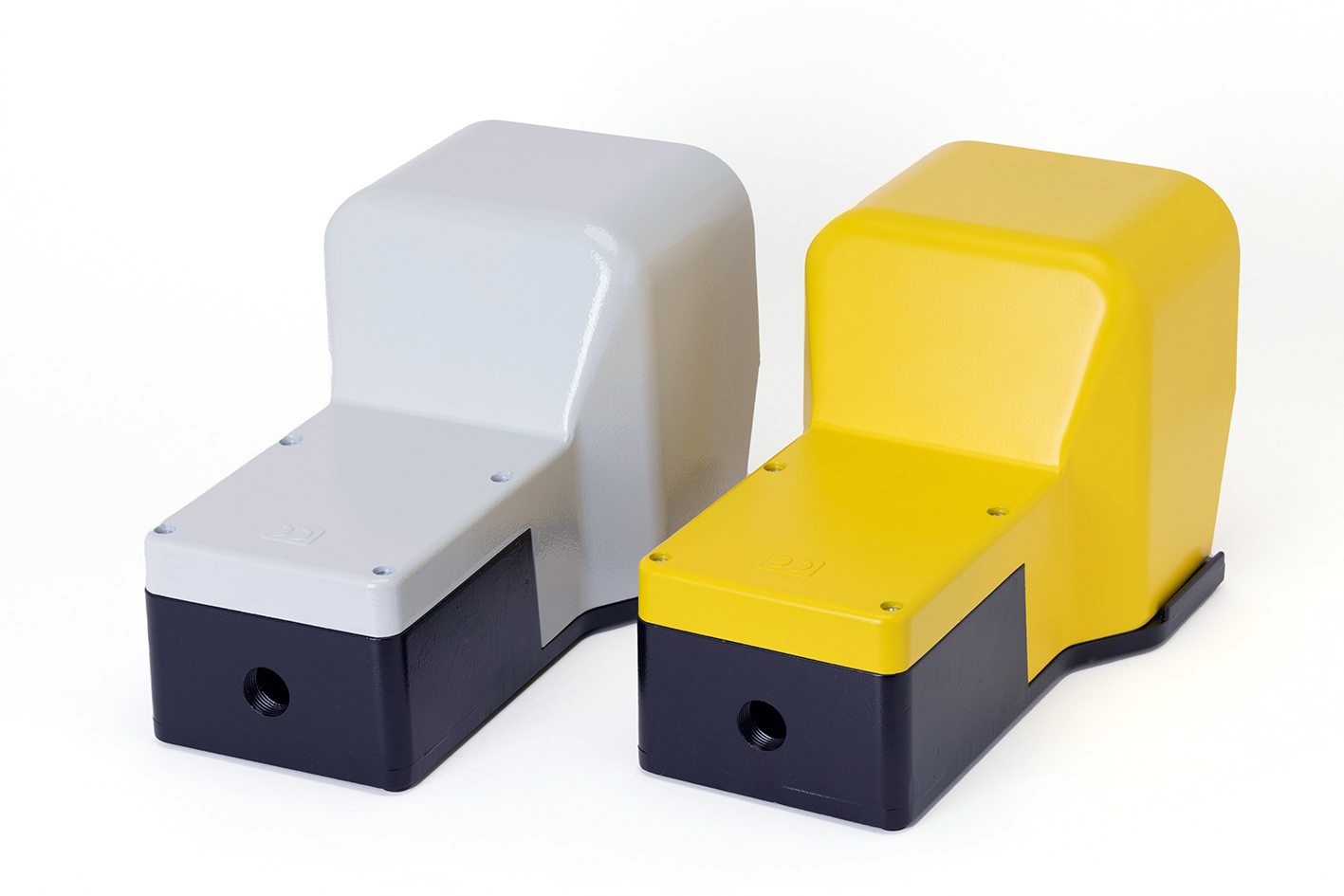

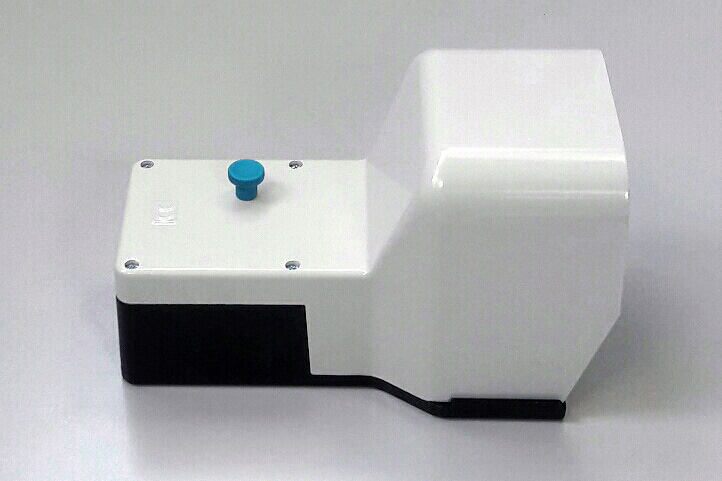

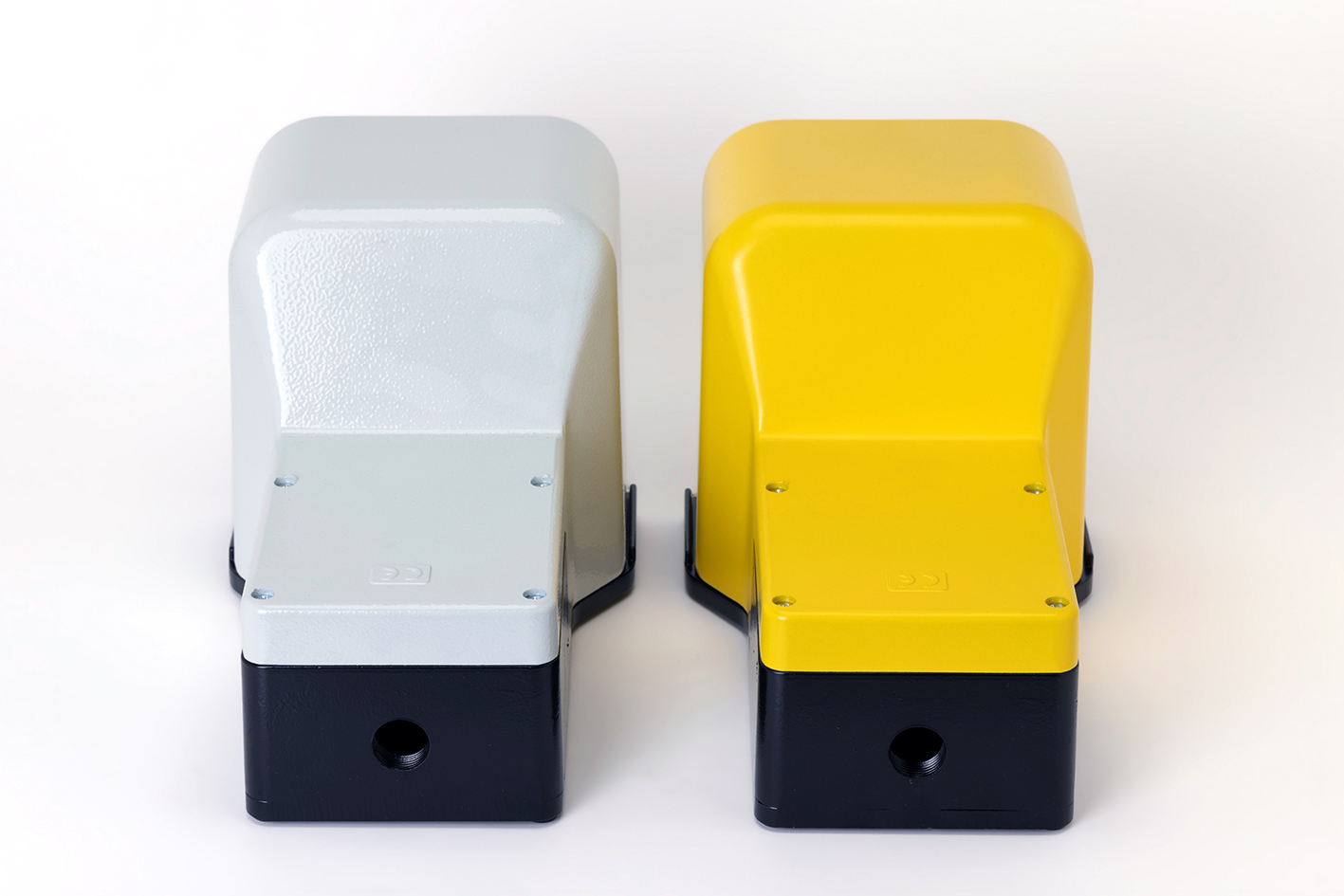

GS Automation’s PCR/PSR footswitch has spring contacts and has one normally closed NC and one normally open NO contact (snap or slow action). Its housing is Black /Yellow Aluminum AlSi11 ( or other colors i.e. Black/Grey on request ) with IP54 degree of protection (IP65 on request ). Double/Triple foot switches on Iron Plate -Safety Lever and Device to maintain lever in lowered position-2 stage actuating force device, complete all available features .The PCR/PSR foot switch fulfills all relevant international standards for worldwide use in applications from all industries.
Main features
| Material | Aluminum (AlSi11) |
| With housing | PCR series |
| Without housing | PSR series |
| Color | Black base, grey RAL 7035 or yellow housing |
| Weight with housing | 1,900 Kg |
| Weight without housing | 1,500 Kg |
| Size with housing | 296 x 164 x 150 mm |
| Size without housing | 296 x 164 x 100 mm |
| Conduit entry | M20 |
| Protection degree | IP54 (IP65 on request) |
Electrical data
| Ith | 10 A |
| IEC | 60947-5-1 – A600 Q300 |
| Ui | 690 VAC |
| Contact resistance | < 10 Ohm |
| Mechanical life | > 10 millions cycles |
| Working temperature | -25 °C to +70 °C |
Implementation
- Footswitch with housing (PCR series).
- Footswitch without housing (PSR series).
- N. 1 snap action (or slow action) contact 1NC/1NO.
- N. 2 snap action (or slow action) contact 1NC/1NO.
- Double / triple footswitches on iron plate.
- Safety lever.
- Device to maintain lever in lowered position.
- 2-stage actuating force device.
Code Scheme
EF – [ FAMILY ] – [ CONTACT OPTIONS ] – [ SAFETY OPTIONS ]
Code composition example: EF-PCR-00-PI
[ FAMILY ]
| PCR |
| PSR |
| PMP |
| PMS |
| PMXP |
| PMXS |
S: No protection
[ CONTACT OPTION ]
| 00 | 1 NO+1 NC snap action |
| 02 | 2 NO+2 NC snap action |
| 01 | 1 NO+1 NC slow action |
| 03 | 2 NO+2 NC slow action |
[ SAFETY OPTION ]
| PI | Safety Lever |
| B | Bistable |
| PM | 2-stage actuating force device |
