PML/F

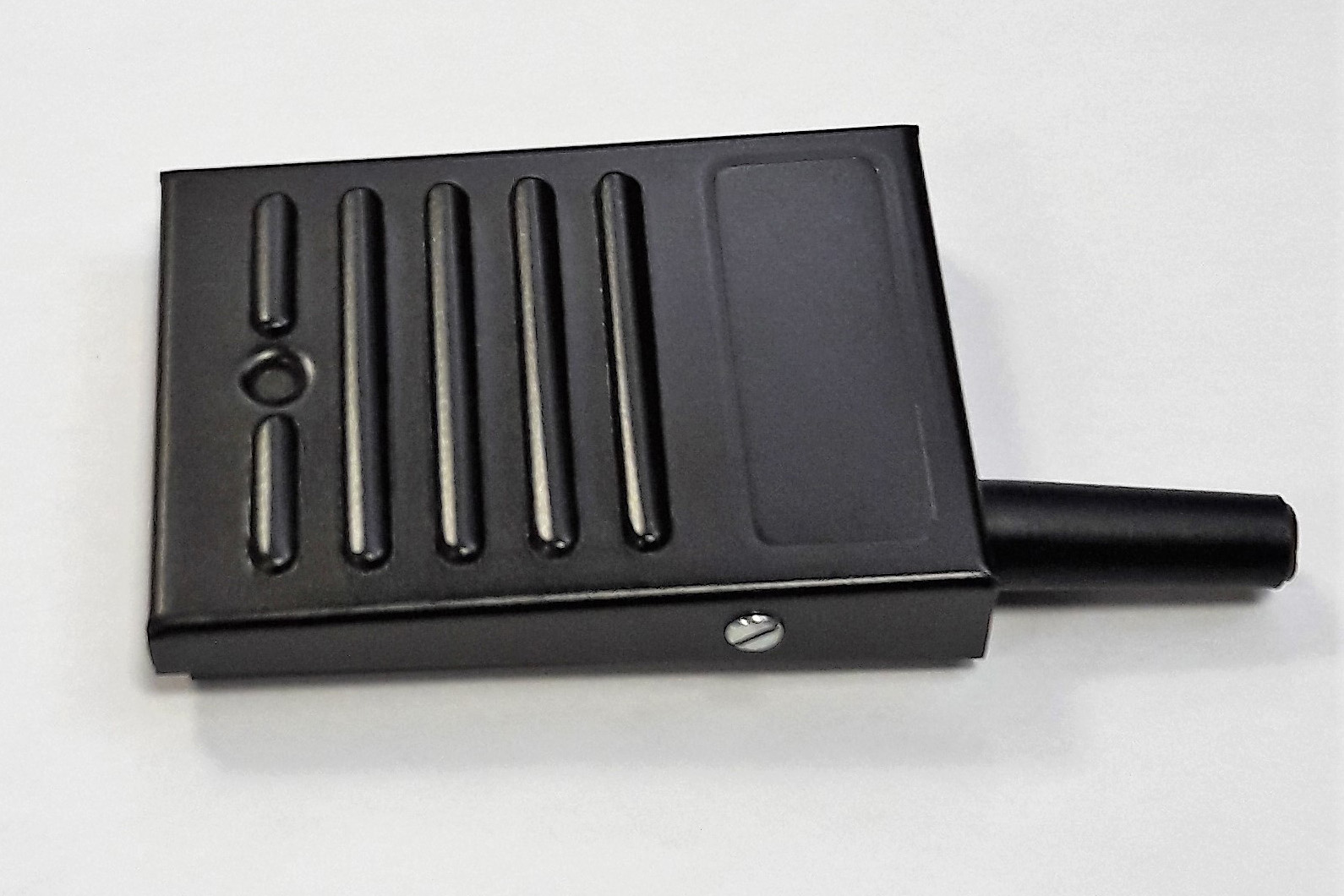

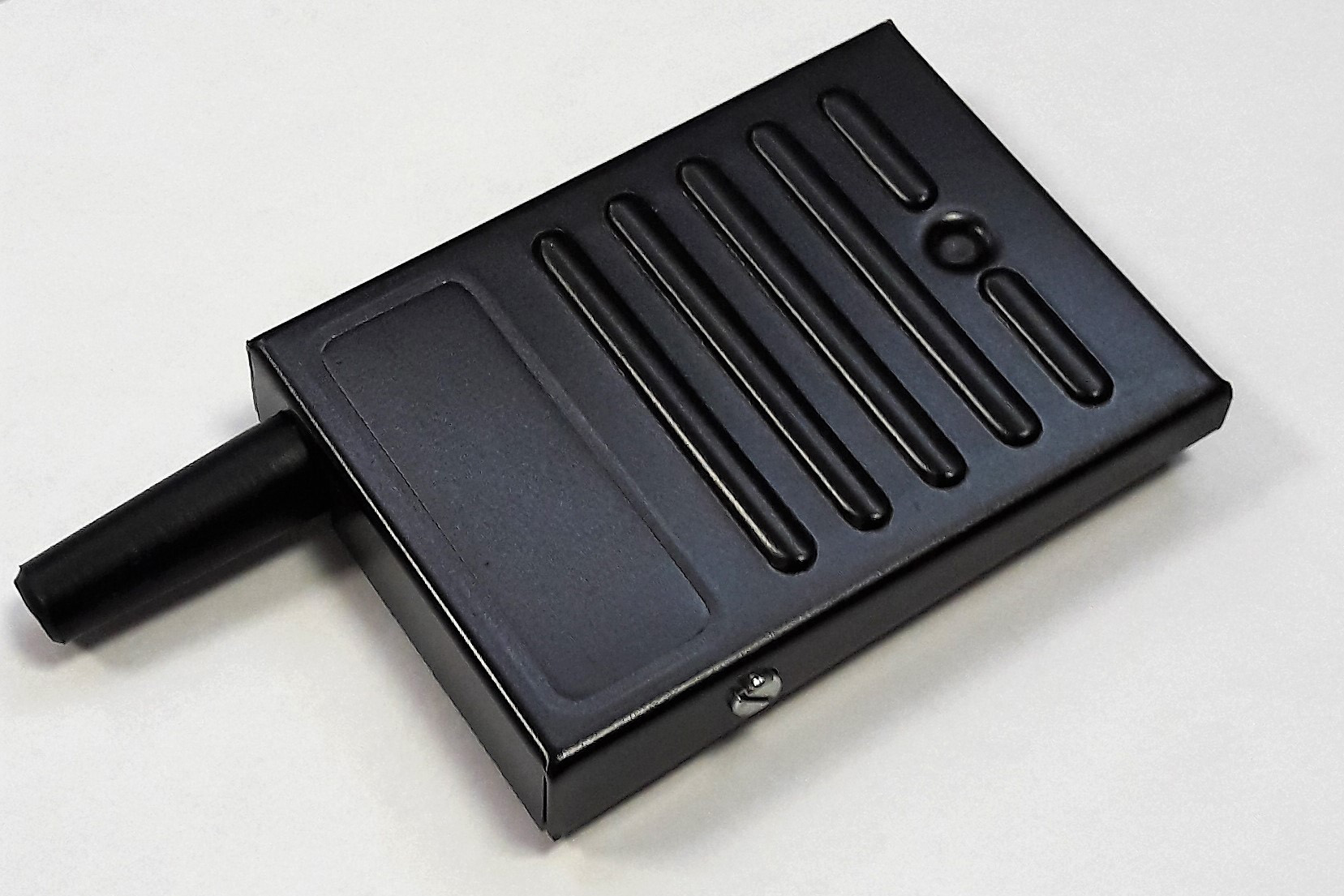

Metal Footswitch.
Metal Footswitch.
Main features
| Material | Anodized iron |
| Color | Black |
| Weight | Kg 0.20 (without cable) |
| Size | 90 x 65 x 20 mm |
| Protection degree | IP40 |
Electrical data
| Current | 15 A, 125/250 VAC |
| Contact resistance | 100 mOhm |
| Mechanical life | 1 millions cycles |
| Working temperature | -25 °C to +70 °C |
Implementation
- Without cable.
- With cable (mt 3.0, 2×0.75 H03 VVF).
